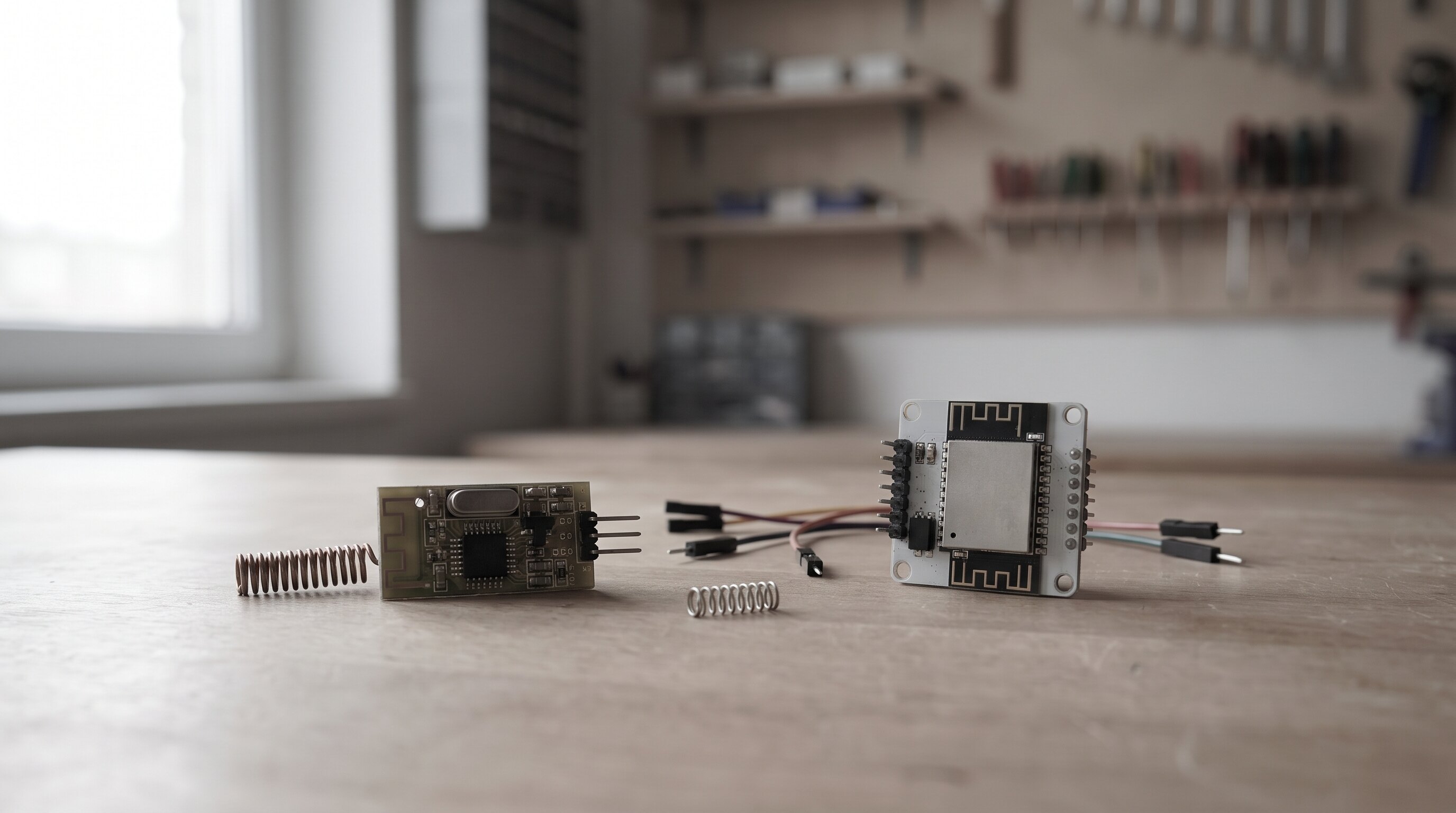

HM-10 vs nRF52: Not the Same BLE UART Profile

Most “Bluetooth serial for Arduino” tutorials treat every cheap BLE module as a drop-in replacement for the old HC-05/HC-06 SPP bridges — pair it, open a terminal, done. That’s true at the AT-command level. It stops being true the moment you write real CoreBluetooth central code instead of using a generic BLE terminal app, because HM-10-family clones and Nordic’s nRF52 boards expose genuinely different GATT shapes under that same “BLE UART” label. BLExAR has to talk to both — HM-10, CC254x, and nRF52 modules — from one iOS app, so the difference isn’t academic.

Two “BLE UART” bridges, two different characteristic layouts

HM-10 clones expose one vendor service (FFE0) with a single characteristic (FFE1) that does double duty — it’s both writeWithoutResponse (central → peripheral) and notify (peripheral → central) on the same UUID. Nordic’s UART Service (NUS) splits that in half: one service (6E400001-B5A3-F393-E0A9-E50E24DCCA9E) with two separate characteristics, one for each direction:

// HM-10: one characteristic does both directions
let uartService = CBUUID(string: "FFE0")
let uartChar    = CBUUID(string: "FFE1") // write + notify, same UUID

// Nordic UART Service (nRF52): direction is split across two characteristics
let nusService = CBUUID(string: "6E400001-B5A3-F393-E0A9-E50E24DCCA9E")
let nusRX      = CBUUID(string: "6E400002-B5A3-F393-E0A9-E50E24DCCA9E") // write
let nusTX      = CBUUID(string: "6E400003-B5A3-F393-E0A9-E50E24DCCA9E") // notify

Central-side code written against one of these and pointed at the other won’t just behave differently — discoverCharacteristics for FFE1 against an nRF52 running NUS returns nothing, because that characteristic doesn’t exist there. BLExAR’s connection flow has to check for FFE0 first, then fall back to 6E400001, before it knows which read/write UUIDs to actually use.

There’s no length prefix — the newline carries the whole protocol

Neither module family gives you a framed packet with a length header. BLExAR’s own format is plain ASCII, comma-separated, newline-terminated — "1234,23.5,1023\n" — and the only thing marking where one row ends and the next begins is that 0x0A byte. That works because BLE notifications aren’t guaranteed to line up with your rows: a notification is capped at the negotiated MTU (20 bytes on a legacy HM-10 connection, up to 185 bytes on nRF52/iOS 10+, 512 under BLE 5), and a ~14-byte row can straddle two notifications if the previous one ended with a partial number left over. The fix is a small accumulating buffer on the receive side, not a smarter parser:

func peripheral(_ p: CBPeripheral, didUpdateValueFor c: CBCharacteristic, error: Error?) {
    guard let data = c.value else { return }
    lineBuffer.append(data)
    while let nl = lineBuffer.firstIndex(of: 0x0A) {
        let line = lineBuffer.prefix(upTo: nl)
        // parse line as CSV, then:
        lineBuffer.removeSubrange(...nl)
    }
}

Code that assumes “one row per notification” instead of buffering to the delimiter will corrupt data intermittently rather than obviously — it looks fine in a quick test and drops or garbles rows once you run it long enough for a fragment to land at exactly the wrong byte.

Two more things worth knowing before you wire this up

• MTU changes throughput, not just packet count. At 20 bytes, HM-10 sends roughly one row per notification; nRF52’s 185-byte MTU can batch 10+ rows into a single notification, which means fewer radio wakeups and meaningfully better battery life at the same sample rate — worth choosing hardware around if you’re logging continuously.
• Query the negotiated MTU instead of assuming one. CBPeripheral.maximumWriteValueLength(for:) tells you what you actually got after connecting. A lot of starter BLE-serial code hardcodes the pre-iOS-10 20-byte default, or copies a 185-byte assumption from an nRF52 tutorial — either one silently misbehaves against the other module family. BLExAR reads this value instead of guessing.

None of this shows up if you’re only sending short test strings from a generic BLE scanner app — it shows up once you’re streaming real sensor rows at a real sample rate over a real connection.

BLExAR’s own Arduino-to-iOS bridge — including the CSV export path — pairs with the Arduino Nano ESP32 and an SSD1306 OLED display, the real hardware behind it. If you want the sketches and Swift bridge code directly rather than reading them here, the BLExAR Nano+OLED Starter packages the RFID, GPS, and OLED builds with the BLE snippet and a wiring diagram. For everything else in the ios-craft space, this GATT/framing distinction is worth checking before you assume two “BLE UART” modules are interchangeable.

Want to see the framing live instead of reading it? The BLE GATT / CSV frame visualizer lets you switch between HM-10 and nRF52 service layouts, inject raw bytes at different MTUs, and watch the reassembly buffer fill and flush in real time.
